Description

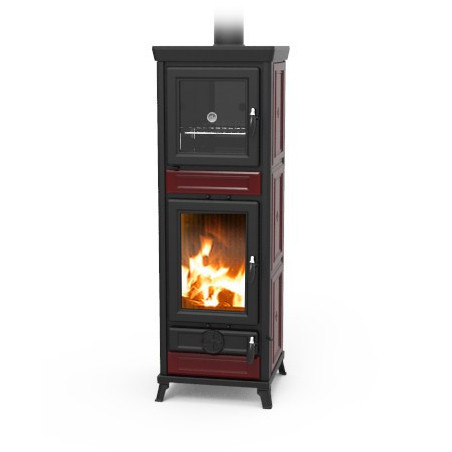

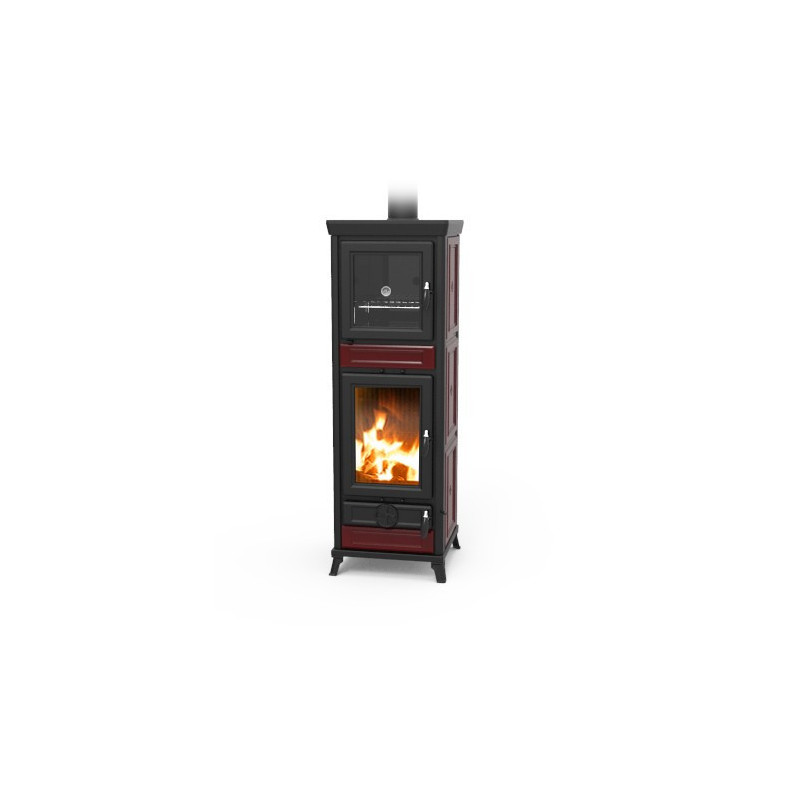

Anna wood stove with oven in majolica only bordeaux
For those who want to have everything from a stove, Anna is the most complete one can request. The wide vision of fire superior to its category, the large enamelled oven and the SMOKE BY PASS device make this stove a precious and unique object.
Smoke outlet Ø 130mm
Top in enameled cast iron
Oven compartment (HxLxP - 303x344x333)
Smoke by-pass technology, drastically reduces the smoke output in the room at each load of wood
Precious handmade majolica majolica
Device for the regulation of the tertiary air
Cast iron hearth door
Cast iron combustion chamber (HxLxP - 439x362x384)
Loading mouth (LxH - 315x470)
Anti-scald handle
Device for regulating secondary air
Device for primary air regulation
Leverage shake grill
DIMENSIONS (HXLXP) 1513X511X575
WEIGHT (KG) 243
HEATING AREA (M²) * A * B * C 82
FOCOLAR POWER (KW) * A * B 10.6
NOMINAL POWER (KW) * A * B 9.1
WOOD TIME CONSUMPTION (KG / H) * A * B 2.3
FUMES OUTPUT DIAMETER (MM) 130
MINIMUM DRAFT REQUIRED (PA) 12
Data sheet
Data sheet
- Potenza Kw
- 11-12-13
- Tipo di Combustibile
- Legna
- Riscaldamento
- ad aria naturale
- Diametro Imbocco
- 130
- Energetic Class
- B
