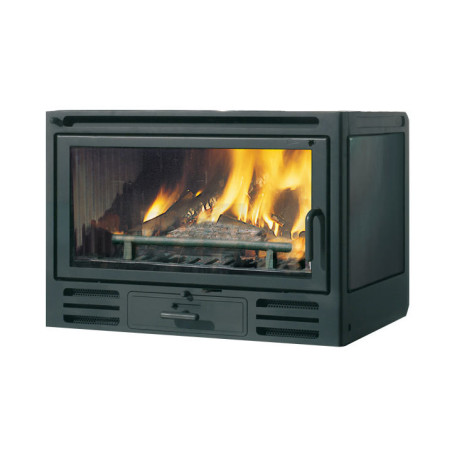

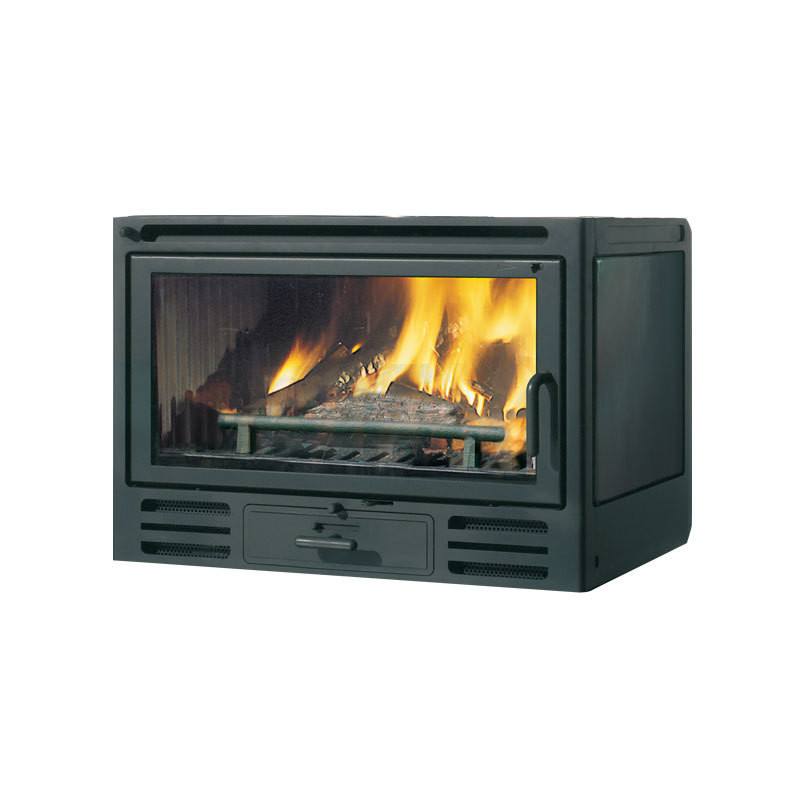

Riga 49 Ventilated Glass Front Firebox 9.6 kW Edilkamin

Riga 49 Ventilated Glass Front Firebox 9.6 kW Edilkamin.

Wood-burning inserts ideal for renovating an old fireplace or creating a new one.

• Cast iron firebox

• Flue outlet Ø 20 cm, male

• Hot air from the front and ductable to two adjacent rooms (optional kit)

• Post-combustion

Min/max technical data

Width 71 cm

Depth 45 cm

Height 49 cm

Firebox dimensions (L x W x H) 52 x 32 x 21.5 cm

Used power 9.6 kW

Efficiency % 89.5

Fuel consumption (wood) 2.3 kg/h

Ø Flue outlet 20 cm

Ø Air intake 12 cm

Total weight 114/122 kg

Vol. Heatable (insulated pursuant to Law 10/91) 250 m³

These appliances are designed to produce hot air through wood combustion.

They are ideal for those who want to renovate an old, malfunctioning fireplace, transforming it into a fully-fledged heating appliance.

They are also ideal for creating unique solutions from scratch, tailored to a wide variety of interior design needs.

They are delivered pre-assembled, ready for use by simply connecting to the flue and air intake.

In the space between the fireplace and the cladding, ambient or outside air is circulated. It enters through the base, heats up along the walls, and is released into the room.

Hot air is distributed throughout the room through special grilles located on the front and, if applicable, can be ducted to adjacent rooms via ducting.

Hot air can be distributed by natural convection or forced by fans; In the case of forced distribution, a regulator is used to modulate the air speed based on its temperature.

The amount of combustion air, which can be primary, secondary (for cleaning the glass), and tertiary (for post-combustion), can be adjusted using dampers.
