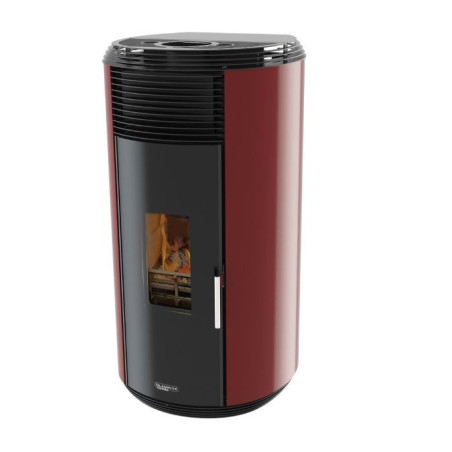

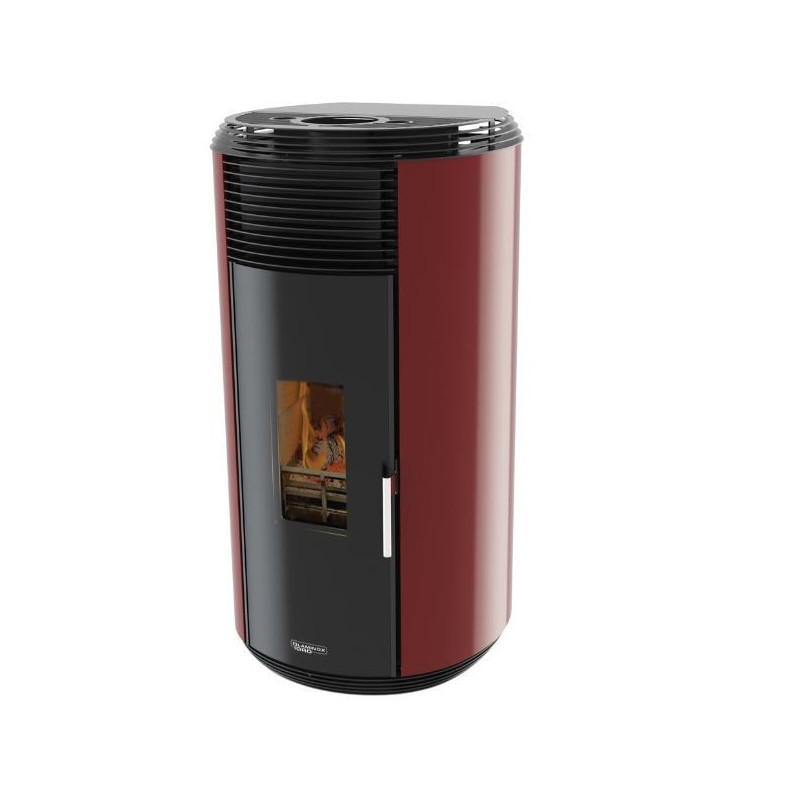

Wood Stove Nadia Red Bordeaux 8 Kw Laminox

High performance and efficient wood stove, rounded design, corten steel structure, painted steel sides in various colors

Fire door (LxH): 210x290 mm

Fire compartment (LxDxH): 210x320x290 mm

For connecting the fireplace or the

stove the smoke channel must have the shortest possible path, limiting the horizontal sections as much as possible, it must

be insulated, must not pass through rooms where installation is prohibited, must include a system

condensate collection and a minimum height of 4 m. Furthermore, the discharge of combustion products must

take place on the roof. Direct discharge to the wall or into closed spaces, even in the open air, is prohibited. Regulations of

reference UNI 10683-2012.

Before the hydraulic connection it is advisable to clean the system in order to eliminate

deposits or processing residues. Connect the thermo stove or boiler to the system using pipes

flexible so as not to constrain it excessively, thus allowing small movements. Always install

of the gate valves in order to isolate the product from the system and allow any operations

cleaning and ordinary and extraordinary maintenance.

Dimensions (WxDxH)

572 x 536 x 1088 mm

Weight 89 kg

Colours: White, Bronze, Aluminum Grey, Glossy Black, Wrinkle Black, Bordeaux Red

Fuel: Wood

Coating: Steel
