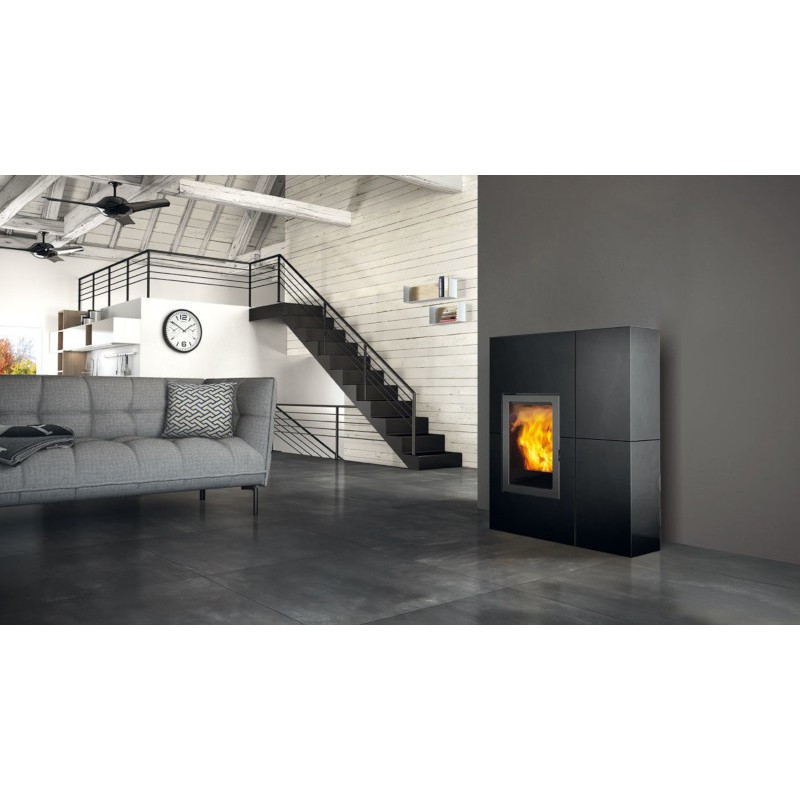

Pellet Stove Blade2 12 Up In Steel Balck 12,1 KW Edilkamin - Mail For Discount

Pellet Stove Blade2 12 Up In Steel Balck 12,1 KW Edilkamin.

Space-saving PELLET STOVES, just 34,5 cm deep

• Cast iron combustion chamber

• Smoke outlet Ø 8 cm upper, female

• EASY TIMER function

• RELAX function (Deactivatable hot air ventilation)

• 2 rear hot-air duct outlets Ø 6 cm, Fans separate settings through remote control, or choice to fit optional room probes for the fans handling.

• 1 ambient air fan + 2 fan for ducting

• Pellet level sensor

• “Mind remote” remote control

• System The Mind Built-in WIFI

• System Leonardo

• Fire Control

AVAILABLE MODELS:

• steel bordeaux

• steel black

• steel opaque white

• steel bronze

OPTIONAL

• Kit airKare

• Kit smoke outlet rear or left side

• NTC Room probe for temperature reading in ducting

• Can be combined with ducting vents SPLIT, BENT, ORIGAMI e SHARP

Technical data min/max

width cm 90

depth cm 34,5

height cm 113

useful output kW 4,3/12,1

efficiency % 90,6

fuel consumption (pellet) kg/h 1/2,8

tank capacity kg 22

autonomy h 8/28

Ø combustion product outlet cm 8

Ø external air intake cm 4

total weight kg 185

vol. that can be heated m³ 315

OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS

The devices are designed to produce hot air by automatically burning wood pellets.

All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.

The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.

The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.

GENERAL OPERATIONAL SCHEME

For the scheme specific to your model, refer to the technical data sheet enclosed with the product.

1 = pellet hopper with top loading hatch

2 = screw for conveying the pellets from the hopper to the combustion chamber

3 = screw gearmotor

4 = pellet combustion hearth

5 = electric heating element for igniting the pellet

6 = centrifugal fan for extracting the combustion fumes

7 = fumes outlet port for connection to flue

8 = synoptic panel for controlling/monitoring the device's operation

9 = combustion air intake port

10 = heat exchanger tubes for producing hot air

11 = grille for delivering the hot air to the room

12 = ports for delivering hot air to adjacent rooms

13 = hot air fan
