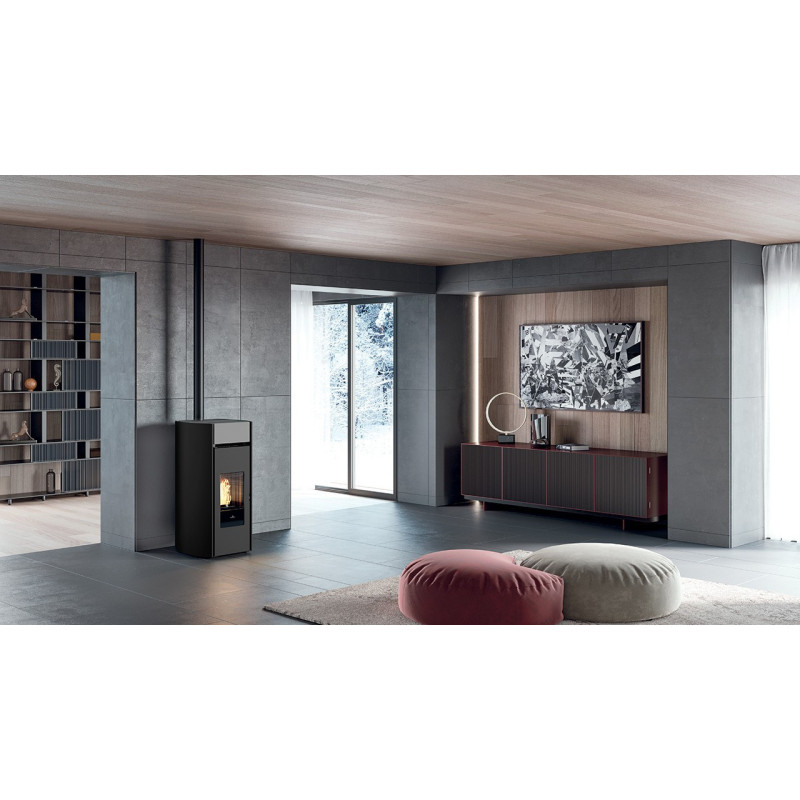

Pellet Stove Myrna Q Plus In Ceramic Grey 10 Kw Edilkamin - Mail For Discount

Pellet Stove Myrna Q Plus In Ceramic Cipria 10 Kw Edilkamin.

• Cast iron combustion chamber

• smoke outlet Ø 8 cm upper, female

• Daily/weekly program

• EASY TIMER function

• RELAX function (Deactivatable hot air ventilation)

• “Mind Remote” remote control

• Built in WIFI

• Pellet level sensor

• airKare system

• Leonardo system

AVAILABLE MODELS:

• Grey steel with sides in opaque white steel

Optional:

• LTE ADVANCED 4G telephone dialer

Technical data min/max

width cm 54,5

depth cm 55

height cm 112

useful output kW 3,5/10

efficiency % 91,4

fuel consumption (pellet) kg/h 0,8/2,3

tank capacity kg 25

autonomy h 11/31

Ø combustion product outlet cm 8

Ø external air intake cm 4

total weight kg 160

vol. that can be heated m³ 260

OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS

The devices are designed to produce hot air by automatically burning wood pellets.

All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.

The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.

The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.

GENERAL OPERATIONAL SCHEME

For the scheme specific to your model, refer to the technical data sheet enclosed with the product.

1 = pellet hopper with top loading hatch

2 = screw for conveying the pellets from the hopper to the combustion chamber

3 = screw gearmotor

4 = pellet combustion hearth

5 = electric heating element for igniting the pellet

6 = centrifugal fan for extracting the combustion fumes

7 = fumes outlet port for connection to flue

8 = synoptic panel for controlling/monitoring the device's operation

9 = combustion air intake port

10 = heat exchanger tubes for producing hot air

11 = grille for delivering the hot air to the room

12 = ports for delivering hot air to adjacent rooms

13 = hot air fan
