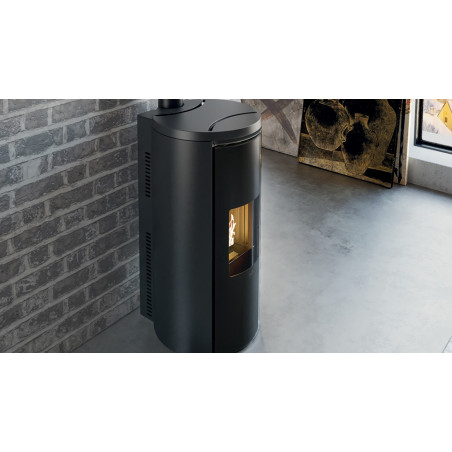

Pellet Stove Celia Air tight C Magic Black Sealed Chamber 7,2 Kw Edilkamin - Mail To Discount
€4,560.00
Tax included
Pellet Stove Celia Air tight C Magic Black Sealed Chamber 7,2 Kw Edilkamin.
MAIL FOR DISCOUNT AND AVAILABILITY.
Security policy
All data is considered confidential and used only to deliver the order
Shipping time
We will ship as soon as possible after receiving the payment
Returns Policy
For returns or information or problems with the products please write email or call if urgent
Pellet Stove Celia Air tight C Magic Black Sealed Chamber 7,2 Kw Edilkamin.
Suitable for modern passive houses.
• cast iron combustion chamber
• Fully glazed external door
• Double door on the combustion chamber
• smoke outlet upper Ø 8 cm upper, female
• Daily/weekly program
• EASY TIMER function
• RELAX function (Deactivatable hot air ventilation)
• “Mind Remote” remote control
• Built in WIFI
• airKare system
• Leonardo system
AVAILABLE MODELS:
• black steel sides
• glass side white or black
Optional:
• LTE ADVANCED 4G telephone dialer
Technical data min/max
width cm 54
depth cm 57
height cm 111
useful output kW 2,7/7,2
efficiency % 92,8
fuel consumption (pellet) kg/h 0,6/1,6
tank capacity kg 16
autonomy h 10/27
Ø combustion product outlet cm 8
Ø external air intake cm 6
total weight kg 142
vol. that can be heated m³ 190
OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS
The devices are designed to produce hot air by automatically burning wood pellets.
All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.
The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.
The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.
GENERAL OPERATIONAL SCHEME
For the scheme specific to your model, refer to the technical data sheet enclosed with the product.
1 = pellet hopper with top loading hatch
2 = screw for conveying the pellets from the hopper to the combustion chamber
3 = screw gearmotor
4 = pellet combustion hearth
5 = electric heating element for igniting the pellet
6 = centrifugal fan for extracting the combustion fumes
7 = fumes outlet port for connection to flue
8 = synoptic panel for controlling/monitoring the device's operation
9 = combustion air intake port
10 = heat exchanger tubes for producing hot air
11 = grille for delivering the hot air to the room
12 = ports for delivering hot air to adjacent rooms
13 = hot air fan
