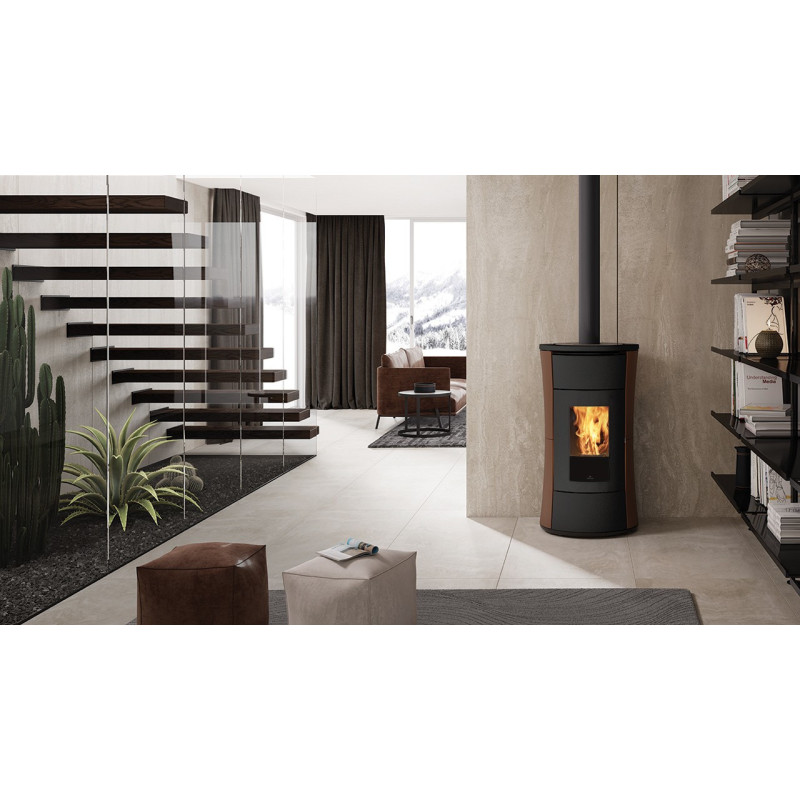

Pellet Stove Cherie 9 Evo ATC Airtight Chamber Bronze 9 Kw Edilkamin

Pellet Stove Cherie 9 Evo ATC Airtight Chamber Bronze 9 Kw Edilkamin.

Suitable for modern passive houses.

• cast iron structure and combustion chamber

• ceramic ignitor

• ceramic version: cast iron front, ceramic top

• steel and soapstone versions: cast iron front and top

• smoke outlet coaxial Ø 8/13 cm upper, female

• 2 hot air outlets with 2 fans supplied as a standard

- 1 front air outlet managed by a remote control working as a room thermostat

- 1 rear Ø 8 ducted outlets to heat a room

• Ducted fan independent setting through the remote control (can be activated fitting a room probe optional)

• Daily/weekly program

• EASY TIMER function

• RELAX function (deactivatable hot air ventilation)

• Pellet level sensor

• “Mind remote” remote control

• System The Mind with built-in WIFI

• System Leonardo

• System airKare ionizer and ozonizer combined action, improving

AVAILABLE MODELS:

• Opaque white

• Bronze

• Dark grey

OPTIONAL

• Hot air channelling kit Ø 8 cm

• Hot air channelling kit Ø 6 cm

• NTC Room probe for temperature reading in ducting

• Air diverter kit

Technical data min/max

width cm 63

depth cm 58

height cm 116

useful output kW 3,7/9

efficiency % 89,2

fuel consumption (pellet) kg/h 0,9/2,1

tank capacity kg 18

autonomy h 9/20

Ø combustion product outlet cm 8/13

Ø external air intake cm 4

total weight kg 216

vol. that can be heated m³ 235

OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS

The devices are designed to produce hot air by automatically burning wood pellets.

All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.

The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.

The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.

GENERAL OPERATIONAL SCHEME

For the scheme specific to your model, refer to the technical data sheet enclosed with the product.

1 = pellet hopper with top loading hatch

2 = screw for conveying the pellets from the hopper to the combustion chamber

3 = screw gearmoto

4 = pellet combustion hearth

5 = electric heating element for igniting the pellet

6 = centrifugal fan for extracting the combustion fumes

7 = fumes outlet port for connection to flue

8 = synoptic panel for controlling/monitoring the device's operation

9 = combustion air intake port

10 = heat exchanger tubes for producing hot air

11 = grille for delivering the hot air to the room

12 = ports for delivering hot air to adjacent rooms

13 = hot air fan
