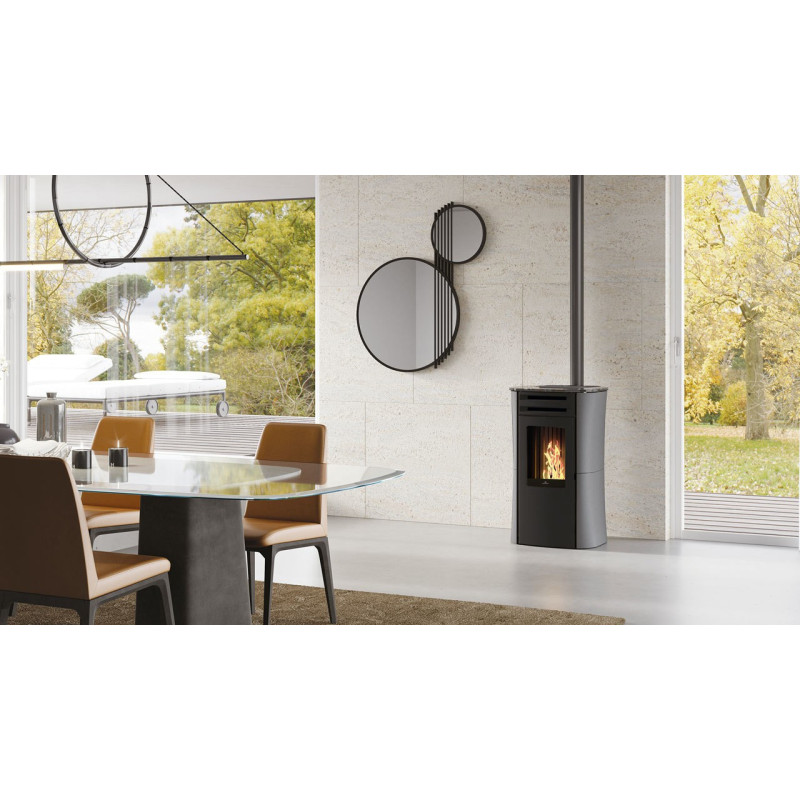

Pellet Stove Dania Air Tight Plus 9,6 Kw sealed chamber grey Edilkamin - Da Scontare

Pellet Stove Dania Air Tight Plus 9,6 Kw sealed chamber grey Edilkamin.

Also suitable for passive houses

Sliding cast iron top for pellet loading

• hearth in cast iron

• upper Ø 8 cm smoke outlet, female

• totally glass external door

• double locking door

• daily/weekly programming

• EASY TIMER function

• RELAX function (ventilation deactivation)

• THE MIND system with integrated WI-FI

• "Mind remote" remote control

• Leonardo system

• Ø 6 cm rear ductable hot air

• 2 fans with independent regulation, via remote control

• airKare system

MODELS AVAILABLE:

• Sides in black steel

• White glass sides

• Black glass sides

Options:

• Ducting kit

• Split, Bent, Origami, Sharp vents

• ducted fan that can be thermostatised by installing an ambient probe

Technical data min/max

width 54 cm

depth 57 cm

height 111 cm

useful power kW 2.7/9.6

yield % 90.7

fuel consumption (pellets) kg/h 0.6/2.2

tank capacity kg 16

autonomy 7/27 hours

Smoke outlet Ø cm 8

Ø air intake cm 6

total weight kg 145

vol. heated (insulation required by law 10/91) m³ 250

OPERATING PRINCIPLE AND INDICATIVE CHARACTERISTICS

These are devices designed for the production of hot air through the automatic combustion of wood pellets.

All phases of operation are managed by an electronic card equipped with special software, in order to obtain high yields and low emissions in conditions of maximum safety.

The hot air produced is introduced into the installation room through special grilles located on the front of the stove and, when envisaged, can be ducted to neighboring rooms via pipes.

The main operating phases can be managed via remote control; connection to remote ignition devices is also possible.

INDICATIVE OPERATING SCHEME

For the specific diagrams of the individual models, consult the technical data sheet attached to the product

1 = pellet tank with loading door from the top

2 = auger for transporting the pellets from the tank to the firebox

3 = gearmotor which manages the operation of the auger

4 = crucible where pellet combustion takes place

5 = electric resistance for starting pellet combustion

6 = centrifugal fan for fume extraction

7 = flue outlet union for connection to the flue

8 = synoptic panel for managing and displaying all operating phases

9 = external air intake port required for combustion

10 = exchanger pipes for the production of hot air for heating

11 = front grille for the diffusion of hot air in the installation environment

12 = outlets for ducting hot air to neighboring rooms

13 = fan for the diffusion of the hot air produced
