Description

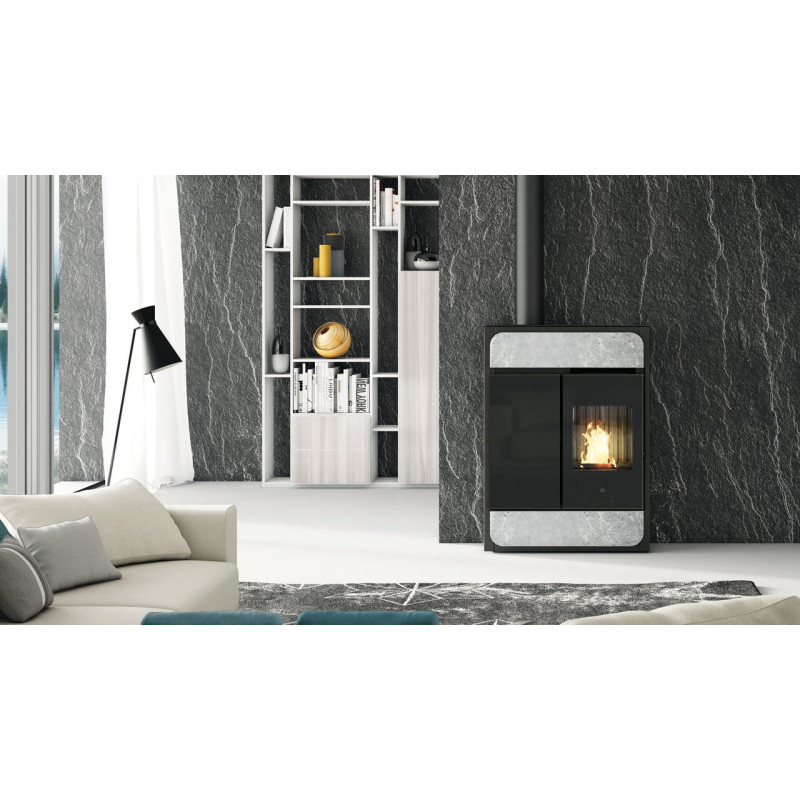

Pellet Stove Bild Up In Stone 9,1 KW Edilkamin.
Space-saving pellet stoves, just 30 cm deep
• Cast iron combustion chamber
• Smoke outlet Ø 8 cm: upper, female - rear , male (optional kit)
• Daily/weekly program
• 1 rear hot air duct, Ø 8 cm
Fans separate settings through remote control
• 2 independent fans
• Handle Fit (optional)
• EASY TIMER function
• RELAX function
• “Mind Remote” remote control
• Built in WIFI
• airKare system
• Leonardo system
Glass front with inserts:
• Matt white ceramic
• Black ceramic
• Black glass
• Soapstone
OPTIONAL
• Ducting vents Split, Bent, Sharp, Origami
• Choice to fit an optional room probe for the ducted fan handling.
• Pellet level sensor
Technical data min/max
width cm 80
depth cm 30
height cm 110
useful output kW 4,4/9,1
efficiency % 89
fuel consumption (pellet) kg/h 1/2,1
tank capacity kg 22
autonomy h 10/22
Ø combustion product outlet cm 8
Ø external air intake cm 4
total weight kg 130
vol. that can be heated m³ 235
OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS
The devices are designed to produce hot air by automatically burning wood pellets.
All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.
The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.
The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.
GENERAL OPERATIONAL SCHEME
For the scheme specific to your model, refer to the technical data sheet enclosed with the product.
1 = pellet hopper with top loading hatch
2 = screw for conveying the pellets from the hopper to the combustion chamber
3 = screw gearmotor
4 = pellet combustion hearth
5 = electric heating element for igniting the pellet
6 = centrifugal fan for extracting the combustion fumes
7 = fumes outlet port for connection to flue
8 = synoptic panel for controlling/monitoring the device's operation
9 = combustion air intake port
10 = heat exchanger tubes for producing hot air
11 = grille for delivering the hot air to the room
12 = ports for delivering hot air to adjacent rooms
13 = hot air fan
