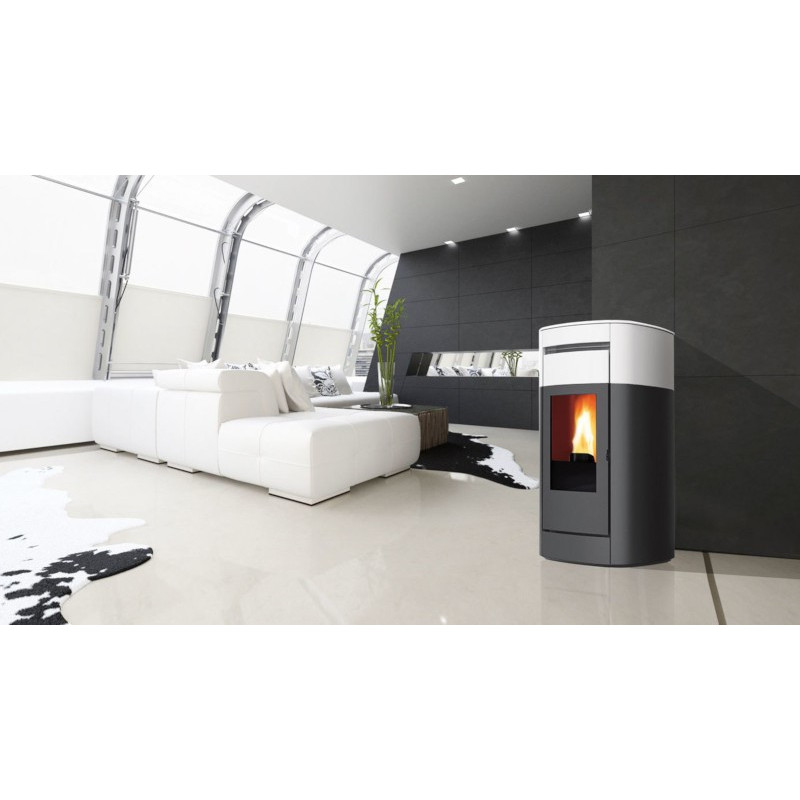

Pellet Stove Vyda Evo In Ceramic White 14,3 KW Edilkamin.
• cast iron combustion chamber
• ceramic ignitor
• Smoke outlet Ø 8 cm rear, male
• Pellet level sensor
• The Mind System with integrated wi-fi
• “Mind remote” remote control
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
• 3 hot air outlets with 3 fans supplied as a standard
• 1 front air outlet managed by a remote control working as a room thermostat
• 2 rear Ø 8 ducted outlets to heat a room, Ducted fan independent setting through the remote control (can be activated fitting a room probe optional)
• Leonardo System
Steel and upper insert in:
• ceramic opaque white
• ceramic dark grey
• soapstone
OPTIONAL
• Kit 12 - 12 bis
• Can be combined with ducting vents SPLIT, BENT, ORIGAMI, SHARP
• Choice to fit an optional room probe for the ducted fan handling.
Technical data min/max
width cm 62,5
depth cm 61,5
height cm 121,5
useful output kW 4,8/14,8
efficiency % 89,9
fuel consumption (pellet) kg/h 1,1/3,4
tank capacity kg 32
autonomy h 9/29
Ø combustion product outlet cm 8
Ø external air intake cm 4
total weight kg 280/293
vol. that can be heated m³ 385
OPERATING PRINCIPLE AND GENERAL SPECIFICATIONS
The devices are designed to produce hot air by automatically burning wood pellets.
All phases are controlled by the electronic controller's software, which guarantee's high efficiency and low emissions in total safety.
The hot air is delivered to the room in which the device is installed via a grille on the front of the stove and, if so desired, may be sent to adjacent rooms via pipes.
The device can be controlled with a remote control, and remote ignition devices can also be hooked up to it.
GENERAL OPERATIONAL SCHEME
For the scheme specific to your model, refer to the technical data sheet enclosed with the product.
1 = pellet hopper with top loading hatch
2 = screw for conveying the pellets from the hopper to the combustion chamber
3 = screw gearmotor
4 = pellet combustion hearth
5 = electric heating element for igniting the pellet
6 = centrifugal fan for extracting the combustion fumes
7 = fumes outlet port for connection to flue
8 = synoptic panel for controlling/monitoring the device's operation
9 = combustion air intake port
10 = heat exchanger tubes for producing hot air
11 = grille for delivering the hot air to the room
12 = ports for delivering hot air to adjacent rooms
13 = hot air fan
Data sheet
Data sheet
- Energetic Class
- A+
- Environmental Class
- 4 Stars
